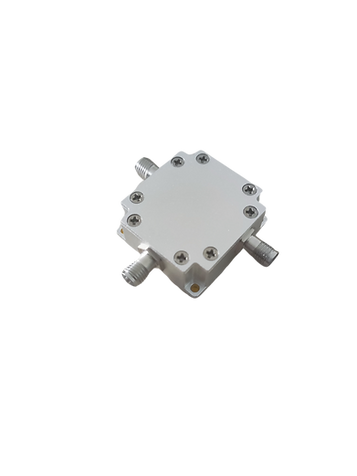

BIAS TEE


RF bias tee combines DC and RF signals onto a single line, allowing simultaneous power and signal transmission in RF circuits.


INQUIRY

Craft your inquiry:

  1. Add items from the catalogue below into the inquiry.

  2. Use the custom designer to explain the specs of your inquiry.

  3. Write and send in a personalized inquiry.

Inquiry submitted.

Please Wait

CATALOGUE

Filter:

Standard Bias Tee

Part Number
Frequency (Ghz)
RF Power (W)
Insertion Loss (dB)
VSWR
Voltage (V)
Current (A)
Connector
Datasheet
FPBT-45-50000-2F-MB
0.045 - 50 GHz
-
3.2
1.5
40
0.5
2.4mm, SMB
-
FPBT-100K-6000-SSF-PIN
0.0001 - 6 GHz
1
1.5
1.5
0 - 50
1
SMA, PIN
-
Part Number
Datasheet
FPBT-45-50000-2F-MB
-
FPBT-100K-6000-SSF-PIN
-

Add To Inquiry:

Quantity:

Inquire

Jump to inquiry

High RF Power Bias Tee

Part Number
Frequency (Ghz)
RF Power (W)
Insertion Loss (dB)
VSWR
Voltage (V)
Current (A)
Connector
Datasheet
FPBT-18000-40000-60-KKF-PIN
18 - 40 GHz
60
1.2
2
60
1
2.92mm, SMA, PIN
-
FPBT-10-12000-100-SF-PIN
0.01 - 12 GHz
100
2
1.5
100
2.5
SMA, N, PIN
-
Part Number
Datasheet
FPBT-18000-40000-60-KKF-PIN
-
FPBT-10-12000-100-SF-PIN
-

Add To Inquiry:

Quantity:

Inquire

Jump to inquiry

CUSTOM DESIGNER

Create a customized specifications and generate a inquiry template.

Frequency:

RF Power (W):

Insertion Loss (dB):

VSWR:

Voltage (V):

Current (A):

Connector
